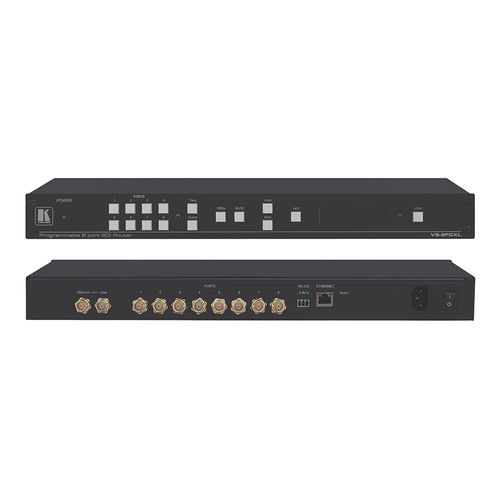

VS−8FDxl is an 8−port matrix switcher for SDI signals for up to 3G HD−SDI. Each SDI port can be defined as either an input or output.

•  Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Supports ANC Data — Embedded audio, teletext, time code, etc.
•  Cable Equalization — Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
•  Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
•  Versatile Genlocking — Using an analog signal.
•  Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.

APPLICATIONS

•  Rental and staging
