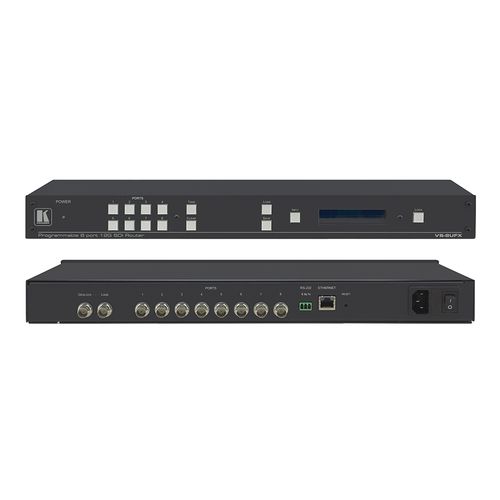

KRAMER VS-8UFX 8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

PORTS

• 8 12G HD-SDI/HD-SDI/SDI video: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs)
• 1 Genlock: 75Ω on a BNC connector

STANDARDS COMPLIANCE

• 12G-SDI: SMPTE ST–2082–1
• 3G HD-SDI: SMPTE 424M
• HD-SDI: SMPTE 292M
• SDI: SMPTE 259M/344M

VIDEO

• Max. Resolution: 4K@60Hz (4:2:2)
• Max. Data Rate: 12Gbps

USER INTERFACE

• Controls: Front Panel Buttons, RS–232, Ethernet, Web pages
• Indicators: LCD display, Power LED

EXTENSION LINE

• SD: Up to 300m
• 1.5G HD: Up to 200m
• 3G: Up to 100m
• 6G: Up to 100m
• 12G: Up to 80m
• COUPLING: AC

POWER

• Source: 100–240V AC
• Consumption : 33VA max

ENCLOSURE

• Size: 19”, 1U
• Type: Aluminum
• Cooling: Fan ventilation

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Safety: CE
• Environmental: RoHs, WEEE

ACCESSORIES

• Included: Power cord, rack ears
• Cables (Recommended): Belden 4794R and 4855R 12G–SDI coax cables

PRODUCT DIMENSION

• 43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.7kg (3.7lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.7kg (6.0lbs) approx.
