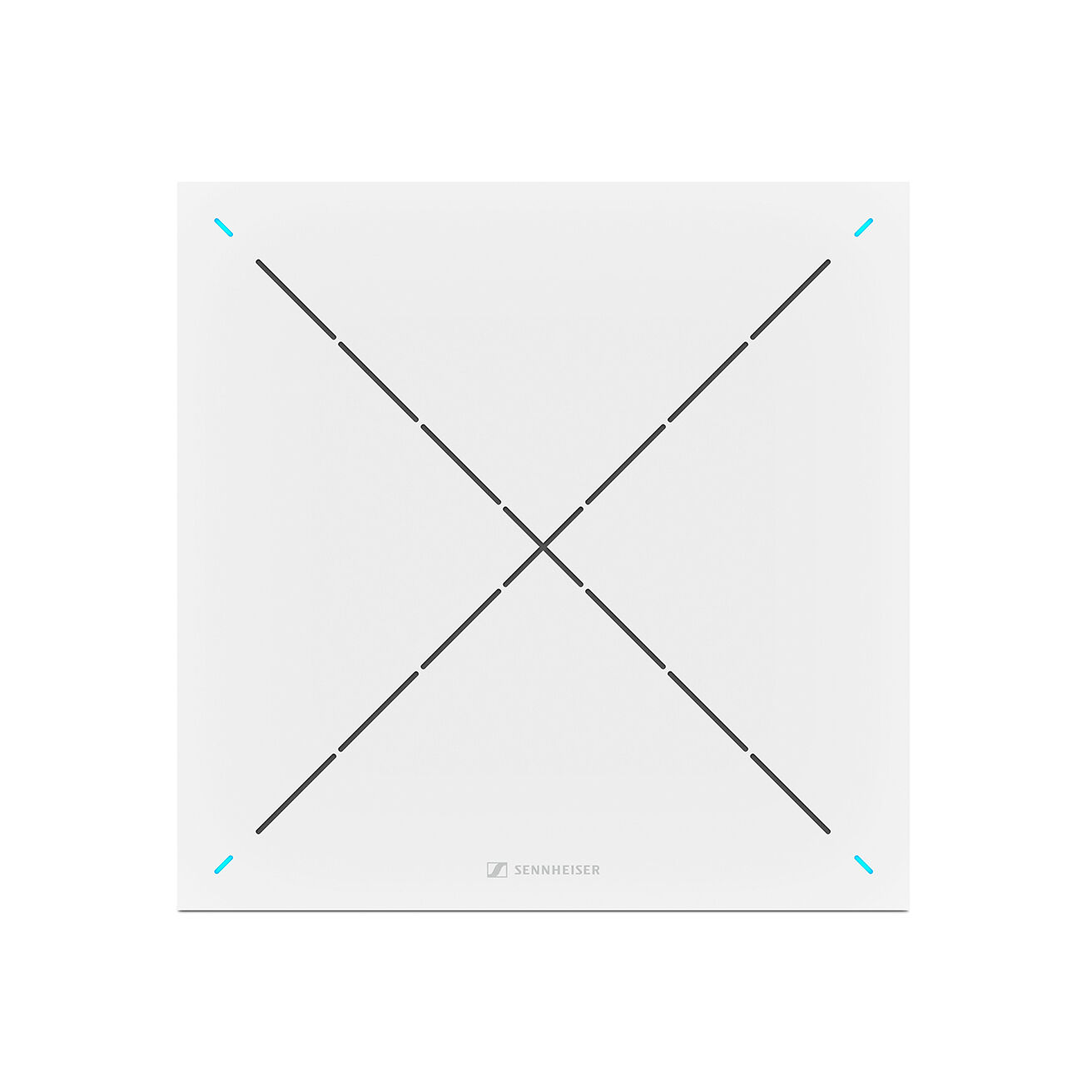

SENNHEISER TeamConnect Ceiling 2 White

Product properties

• DIMENSIONS (Ø X H) : 590 X 590 X 43 MM

• WEIGHT : 5670 G (12.5 LBS)

• AUDIO OUTPUT



  : 1 X 3-PIN TERMINAL (FITS PHOENIX CONTACT MCVW 1.5-3-ST-3.81)

  : 2 X DIGITAL DANTE NETWORK AUDIO (RJ-45 PRIMARY AND SECONDARY)

• ETHERNET : 1 X RJ-45 ETHERNET PORT FOR POE POWER SUPPLY AND DATA/CONTROL COMMUNICATION

• SUPPLY VOLTAGE : 44 – 57 V DC POE IEEE 802.3AF CLASS 3

• POWER CONSUMPTION : MAX. 8.8 W

• SAFETY CERTIFICATION : UL 62368 CERTIFICATION (INCLUDING UL 2043 TESTING AND COMPLIANCE)

Acoustic properties

• TRANSDUCER PRINCIPLE : PRE-POLARIZED CONDENSER MICROPHONE

• AF FREQUENCY RESPONSE : 160 HZ TO 18,000 HZ

• SENSITIVITY : 0 DBV/PA (988 MV/PA)

• SIGNAL-TO-NOISE RATIO : 83 DB (A)

Product properties

• DIMENSIONS (Ø X H)



  590 X 590 X 43 MM

• WEIGHT



  5670 G (12.5 LBS)

• AUDIO OUTPUT



  1 X 3-PIN TERMINAL (FITS PHOENIX CONTACT MCVW 1.5-3-ST-3.81)

  2 X DIGITAL DANTE NETWORK AUDIO (RJ-45 PRIMARY AND SECONDARY)

• ETHERNET : 1 X RJ-45 ETHERNET PORT FOR POE POWER SUPPLY AND DATA/CONTROL COMMUNICATION

• SUPPLY VOLTAGE : 44 – 57 V DC POE IEEE 802.3AF CLASS 3

• POWER CONSUMPTION : MAX. 8.8 W

• SAFETY CERTIFICATION : UL 62368 CERTIFICATION (INCLUDING UL 2043 TESTING AND COMPLIANCE)

Acoustic properties

• TRANSDUCER PRINCIPLE : PRE-POLARIZED CONDENSER MICROPHONE

• AF FREQUENCY RESPONSE : 160 HZ TO 18,000 HZ

• SENSITIVITY : 0 DBV/PA (988 MV/PA)

• SIGNAL-TO-NOISE RATIO : 83 DB (A)

• LATENCY : 4 MS

• EQUIVALENT NOISE LEVEL : 11 DB (A)

• NUMBER OF KE 10-237 MICROPHONE CAPSULES : 28

• PICK-UP PATTERN : BEAM PATTERN

• MAX. SOUND PRESSURE LEVEL : 104 DB SPL

• DYNAMIC RANGE : 93 DB (A)

Ambient Conditions

• TEMPERATURE RANGE



  : OPERATION: 0 TO 40°C (32 – 104 °F)

  : STORAGE: –10 TO 60°C (14 – 140 °F)

• RELATIVE AIR HUMIDITY : 20 TO 95%, NON-CONDENSING

• LATENCY : 4 MS

• EQUIVALENT NOISE LEVEL : 11 DB (A)

• Dynamic range : 93 dB (A)Number of KE 10-237 microphone capsules : 28
• Pick-up pattern : Beam pattern
• Max. sound pressure level : 104 dB SPL
