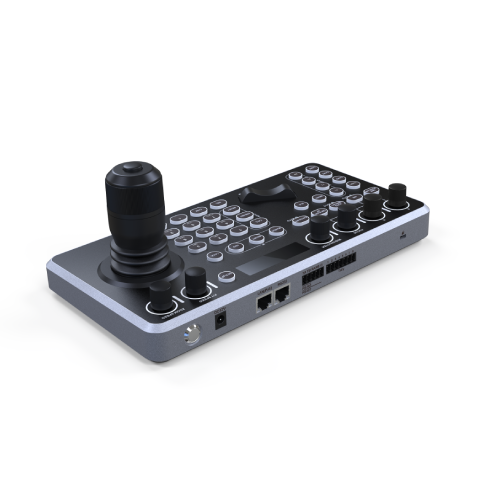

Minrray AK030 PTZ Camera Controller

Product Features:

 1. Support network and stimulation control methods. Dependent IP address available in network mode.

 2. Support VISCA, ONVIF, PELCO-P, PELCO-D and NDI protocols, and fully compatible with VISCA.

 3. With central control function, this controller can work on cameras’software.

 4. Adopting four-dimensional rocker, and the texture is comfortable. Twisting the rocker can directly control the camera in all directions.

 5. The lens can be zoomed in and out, and the strength of joystick control can determine the control speed. IE browser can add configuration of front-end equipment

 6. This controller provides four instant access to control cameras and 255 cameras can be quickly switched through a simple tap.

 7. Camera exposure, aperture, white balance, focus, backlight compensation, OSD menu, can be adjusted through this controller.

 8. Support Power over Ethernet. Power supply and control can be conducted simply through one network cable, making the wiring simpler.

 9. Security protection: with password and Kensington lock protection to prevent illegal operations and settings, protect the security of the device

Technical Specification:
