Minrray VC710 Sistema de Video Conferencia

Item

Parameter

Description

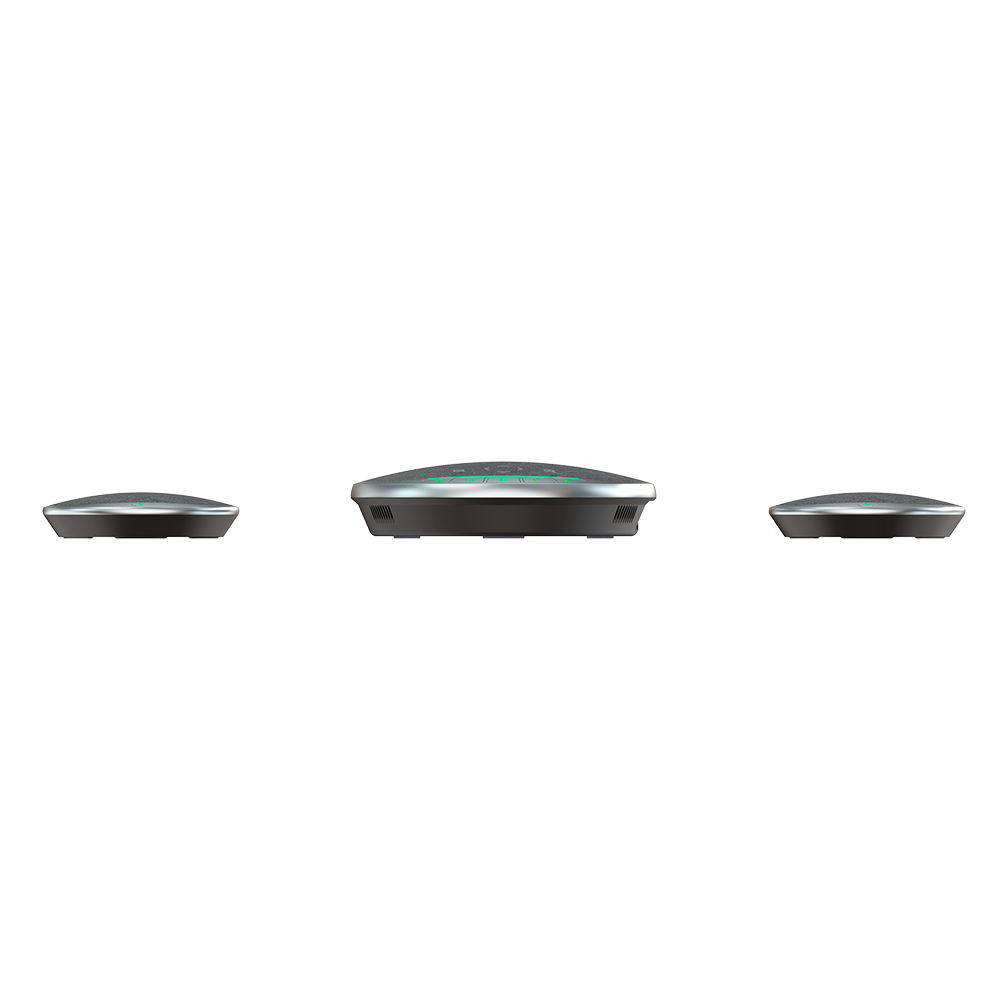

Product Appearance

(The button silk screen is on pending, subject to the final output ID)

Audio technical parameters

Acoustic echo cancellation（AEC）

Full-duplex echo cancellation depth can reach more than 65dB

Echo length

≥500ms

Two-way noise compression（NC）

Noise compression below 25dB

Automatic Direction finding Technology of Intelligent microphone（EMI）

Support

Automatic gain control technology（AGC）

Support

Audio parameter

Microphone Frequency Response

100HZ-22KHZ

Speaker Frequency Response

100HZ-22KHZ

Pickup range

4M，360°

Speaker volume

Maximum: 85dB

Interface

Main Microphone

Line in/out

3.5MM audio in/out interface

RJ45metwork port

Connect with extended microphone

USB Interface

TYPE-B audio in/out interface

Power switch

Long press 3S to open the device

Expansion Microphone

RJ45 network port

Connected with main microphone

Button description

Button silk screen

Volume button

decrease/increase volume

Bluetooth button

Turn on/off Bluetooth

Off/on hook button

Off-hook/on-hook（off-hook enter or exit calling statue when there is a skype for business call.）

Microphone mute button

Turn on/off microphone

Indicator

Bluetooth status indicator

Blue light flashing

Bluetooth pairing status

Blue light is on

Bluetooth is connected

Microphone status indicator

Red light is on

Mute the microphone

green light is always on

The microphone is working

Working status indicator

Red light is on

Mute the microphone

green light is always on

The microphone is working

Power status indicator

Red light is on

The battery is low and must be charged

Flashing green

Charging

green light is always on

The battery is fully charged

Bluetooth

Support

Power supply

Built-in battery

Built-in 5200mA battery , working duration is more than 8 hours. Standby time 90 days

USB

Able to connect with USB

Application environment and specifications

Reverberation time

< 0.5 second

Noise level

< -48 dBA

System

Windows/Andriod/iOS /Linux

power supply

AC100~240V，50-60HZ，12W

Operating temperature

0°C-50°C (Operating statue)

humidity

20%-85%

Safety specifications

CE MARK (LVD & EMC DIRECTIVE ); ROHS

Dimension

152mm*152mm*38mm

Accessories

Standard accessories

USB cable/cascade cable/instruction manual/certificate/warranty card

Bluetooth Adaptor
