SanWarm SK-1730 All in one Vmix Switcher

Portable Production Solution ALL

Based on vMix

Appearance and Material

1,H igh strength shock resistant fuselageThe shell and chassis ofSK 1730 series broadcast live portable production solution are made ofmatte alloy splicing structure, which reaches the level of military grade seismic and compressiveresistance, and the firmness and structural stability are more than 99% of the same type products.

2,U ltra thin LCD screen

The main screen uses 17.3inch ultra thin LCD screen, with toughened glass film, to protect thescreen of the all in one machine to effectively offset the stress on the surface when it is underexternal force, greatly improving the force bearing capacity of the LCD screen.

3.Safety Lock

SK1730 series live portable production solution adopts upturned structural design. When youneed to expand the device, ju st slide the lock right and turn it over. When you need to close thedevice, just close the screen down and gently press it down, and hear the lock sound.

4.Operating platform

After opening theupper flap of the live portable production solution you can see the operatingplatform of the device. The operating platform is generally composed of three parts, which arethe embedded PC keyboard, midi controller switcher , and the touch pad. We will introduce thefunction an d use method of each part one by one in the following.

5. Appearance color

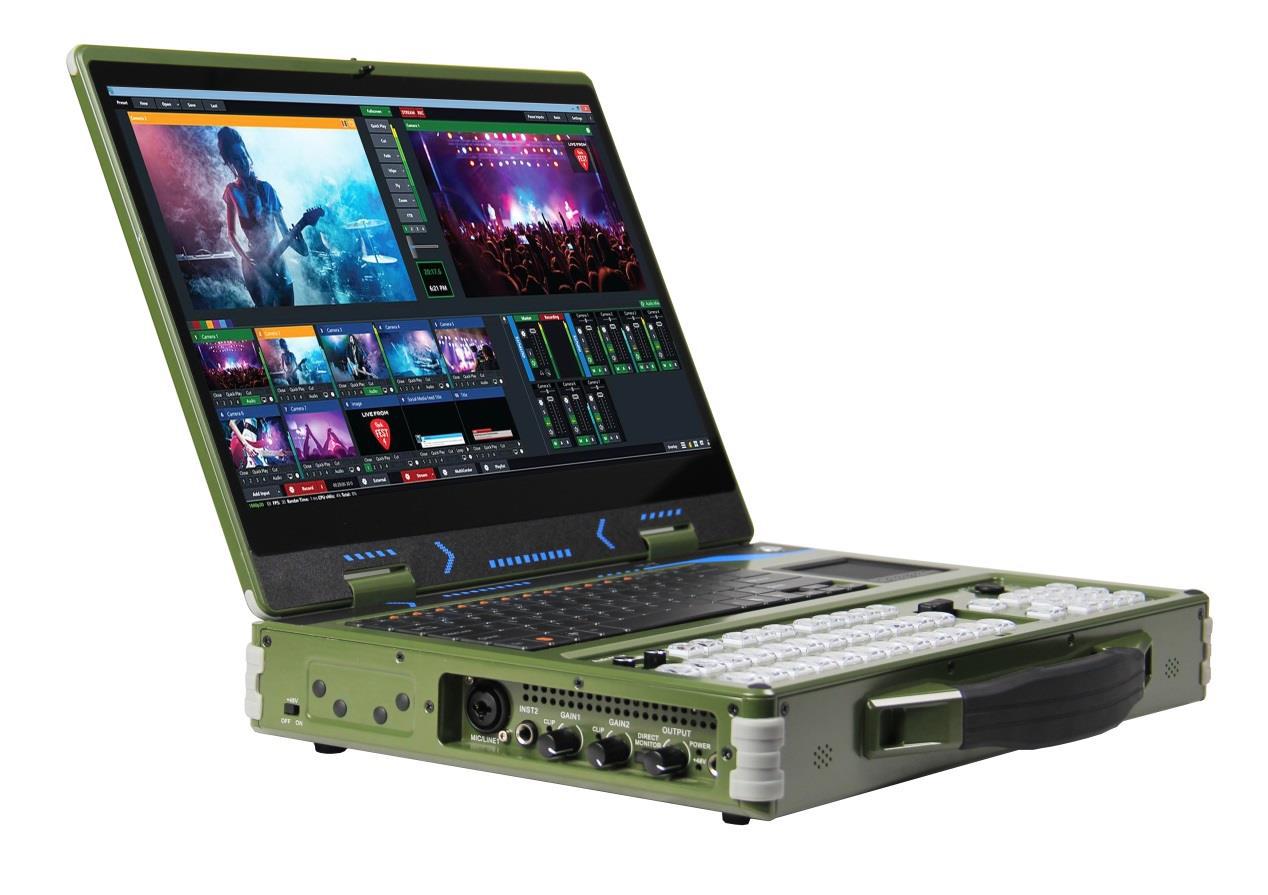

SK1730 series broadcast live portable production solution has three appearance colors: black,silver and army green

6,Built in sound card

SK173 0 series Built in UMC202 sound card , the specific interface description is shown below

1. MIC/LINE1 interface. You can connect microphones, Musical Instruments, or line level sources to these ports.

2 INST2 : Can connect instruments and sound sources to this port

5 The DIRECT MONITOR selector activates direct listen to zero delay (no delay) input signals when enabled

10 The SIG indicator indicates the presence of an audio signal in the channel.

11 The INST GAIN 2 knob adjusts the input level at the INST 2 input.

15 The OUTPUT knob adjusts the OUTPUT level of the 1(L) & 2(R) OUTPUT

7 Switch table layout instructions

In terms of function,SK 173 0 series live portable production solution embedded vMix layoutguide switching console is one of the most popular and perfect construction applied to liveproduction at pr esent. All buttons on the broadcast switcher control panel ar e d ouble colorbacklight button design helps the operator to quickly identify important keys, which greatlyreduces the chance of switching control operation errors.SK173 0 series live portable production solution adopts professional midi controller , the specificfunctions are as follows
