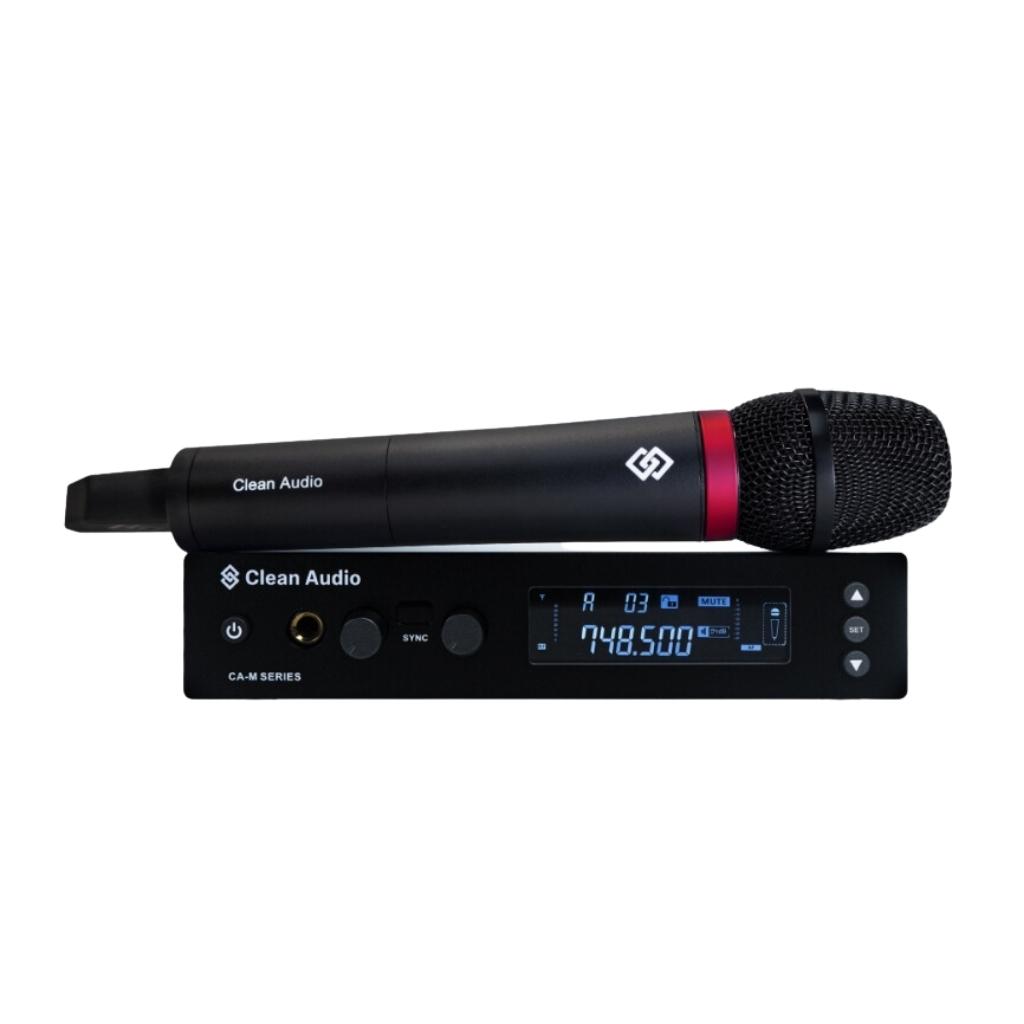

Clean Audio CA-M1-D 289

Technical Specification

Frequency Range : 694-703 MHz 748-758 MHz
Modulation Mode : FM
MAX Deviation Range : ±50KHz
AF Responses : 100Hz-10KHz
S/N ratio : >97dB
Sensitivity : >105dB
T.H.D : ≤5%(@1KHz)
AF Processing : Dynamic compression and extension technology
Effective Operating Range : 100m

CA-001U D Receiver
AF Output Impendence : 600Ω
Output Level : 0-300mv
THD : ≥85dB
Power Supply : DC 12V 650mA

DPA-3 Handheld Transmitter
Oscillation : PLLsynthesized
Frequency Stability : ≤±10ppm
MAXRegulation : ±50KHz MAX
Output Power : 30mw
Harmonic Radiation : <-55dBc
MAX Input Sound Pressure : 130dB SPL
Pick-up Type : Dynamic(Handheld)
Battery : AAsize

MSC 289
Transducer principle :  dynamic
Frequency response  : 40 – 18000 Hz
Pick-up pattern : cardioid
Sensitivity (free field,   :  2.8 mV/Pa
Nominal impedance : 350 Ω
Min. terminating impedance :  1 kΩ
Weight（N.W) : 50 g
