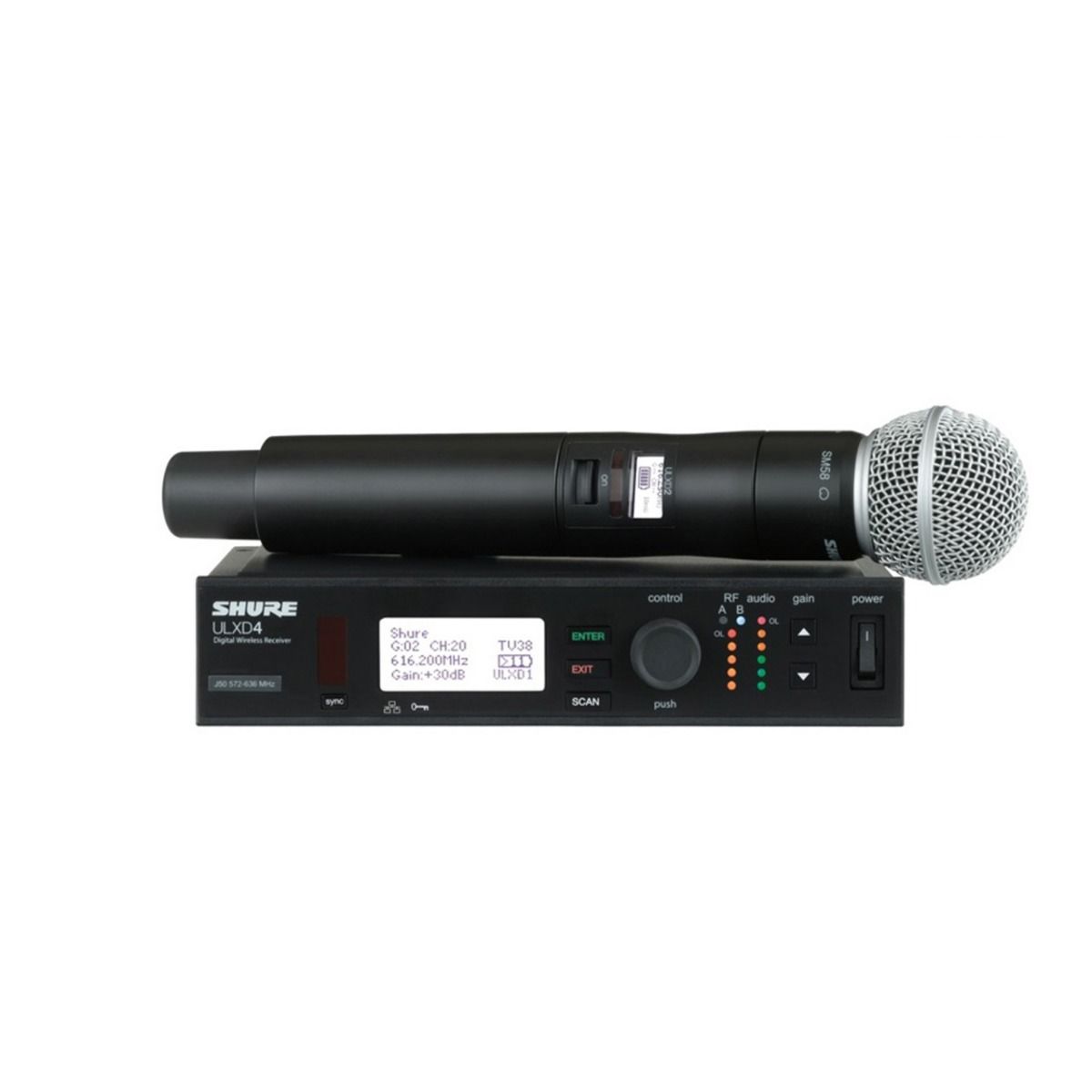

SHURE ULXD24A/SM58-M19 ไมโครโฟนไร้สายแบบไมค์เดียว คลื่นความถี่ 694-703 MHz

ประกอบด้วย

1.ULXD4A=‐M19

2.ULXD2/SM58=‐M19

SHURE ULXD4 Digital Wireless Receiver

     The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

     The ULXD4 offers extremely efficient RF performance, enabling a dramatic increase in the number of simultaneous active transmitters on one TV channel. Transparent 24-bit / 48 kHz  digital audio quality with incredibly accurate low end and transient response delivers the purest reproduction of source material ever available in a wireless system. Intelligent scanning and one touch sync makes choosing the best frequencies and linking to transmitters incredibly fast and efficient. For applications where privacy is a requirement, AES 256-bit encryption provides government-sanctioned security. Ethernet networking allows Wireless Workbench software integration and enables computer control of receiver settings.

     Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound reinforcement.

Features:

• Up to 72 MHz tuning range
• Predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• Optimized scanning automatically finds, prioritizes and deploys the cleanest frequencies to transmitters over IR sync
• Front panel gain adjustment buttons provide up to 60 dB additional gain
• Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
• Interference detection and alerts provided on both the receiver and Wireless Workbench® 6
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control
• Interference detection and alerts provided on both the receiver and WWB6
• AMX/Crestron control-compliant
• Support for frequency coordination with the AXT600 Axient® Spectrum Manager
• Yamaha® device ID allows simplified channel patching on CL consoles
• Rugged metal chassis
• Intuitive front panel LCD menu and controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Remoteable ½ wave antennas
• Furnished rack hardware

SHURE ULXD2 Handheld Transmitter

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers transparent audio quality and rock-solid RF performance. Intuitive controls and menu screens combined with a high-contrast LCD make adjustments fast and easy, and IR sync rapidly relays setting changes to the receiver. Two AA Alkaline batteries provide up to 11 hours of performance time, and advanced Shure lithium-ion rechargeability extends battery life and metering precision.

     For applications where secure transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted signal. Combined with a wide selection of compatible Shure microphone heads - including the legendary SM58® - the ULXD2 delivers the sound quality and performance demanded in professional sound reinforcement.

Features:

• 30Hz to 20kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges, including the legendary SM58Ò
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• >120 dB dynamic range
• 1, 10, and 20 mW selectable RF output power (region dependent)
• 5 segment battery fuel gauge (For non-Shure branded batteries)
• Optional Shure SB900 lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Up to 11 hours continuous use with 2 x AA batteries
• Backlit LCD with easy to navigate menu and controls
• 100 meter (300 ft.) operating range
• Rugged metal construction
• Frequency and power lockout

SHURE SM58 Vocal Microphone

     The legendary Shure SM58® vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech.

     A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

     Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• Frequency response: 50 to 15,000 Hz
• Replacement cartridge: R59
• Dynamic (moving coil)
• Frequency Response 50 to 15,000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency
