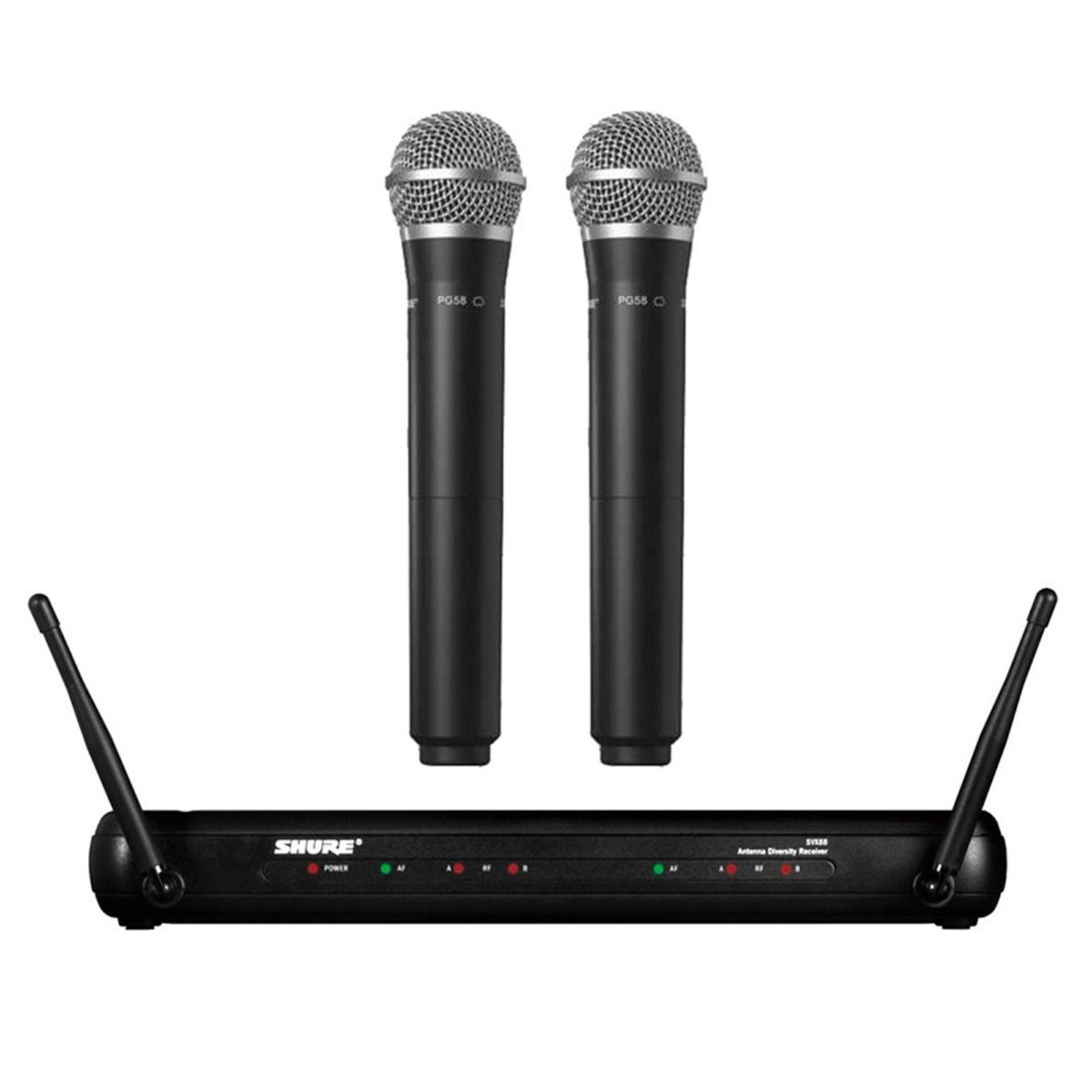

SHURE SVX288TH/PG58-M19 ไมโครโฟนไร้สายแบบไมค์คู่ คลื่นความถี่ UHF 694-703 MHz

SHURE SVX2 Wireless Handheld Transmitter เครื่องส่งไมโครโฟนลอย

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Features : ไมโครโฟนไวเลส

• RF Level Switch between 1mW and 10mW
• 2 “AA” batteries
• Up to 10 hours of battery life
• Bottom on/off switch design
• Anti-rolling ring on grille for PG28
• Power and battery status LED
• 6 color rings for microphone identification

Specifications : ไมค์ไวเลส

• Transmitter Type: Handheld
• Dimensions: 254 mm X 51 mm diameter
• RF Output Power: 1
• Battery, endurance: 10 h
• Weight: 270 g
• Further technical specifications:
  • Audio Input Level: –20 dBV maximumInput Impedance: 22 kΩ
  • RF Output (dependent on applicable country regulations):
  • HI power mode: 10 mW maximum
  • LO power mode: 1 mW maximum
  • Weight: 270 g (10.2 oz.)(without batteries) Housing: Molded ABS
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries

SHURE SVX88 Dual Diversity Receiver เครื่องรับไมโครโฟนลอย

Dual channel diversity receiver for use with Shure SVX Wireless systems.

Features : ไมโครโฟนไวเลส

• Up to 8 selectable channels
• Up to 4 compatible systems*
• Antenna Switching Diversity
• Adjustable Squelch Level
• 1/4″ and XLR output
• Available with Handheld and Lavalier system packages

Specifications : ไมโครโฟนลอย ไมค์ลอยไร้สาย

• Power supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
• Maximum output level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW
• Further specs :
  • Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)
  • Weight: 245 g (11.5 oz.)
  • Housing: Molded ABS
  • Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
  • XLR connector into 100 kΩ load: -16 dBV (MIC)
  • 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)

• Output Impedance :
  • XLR connector: 600 Ω
  • 6.35 mm (1/4”) connector: 600 Ω
  • Sensitivity: –105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dBm, typical
  • Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply
