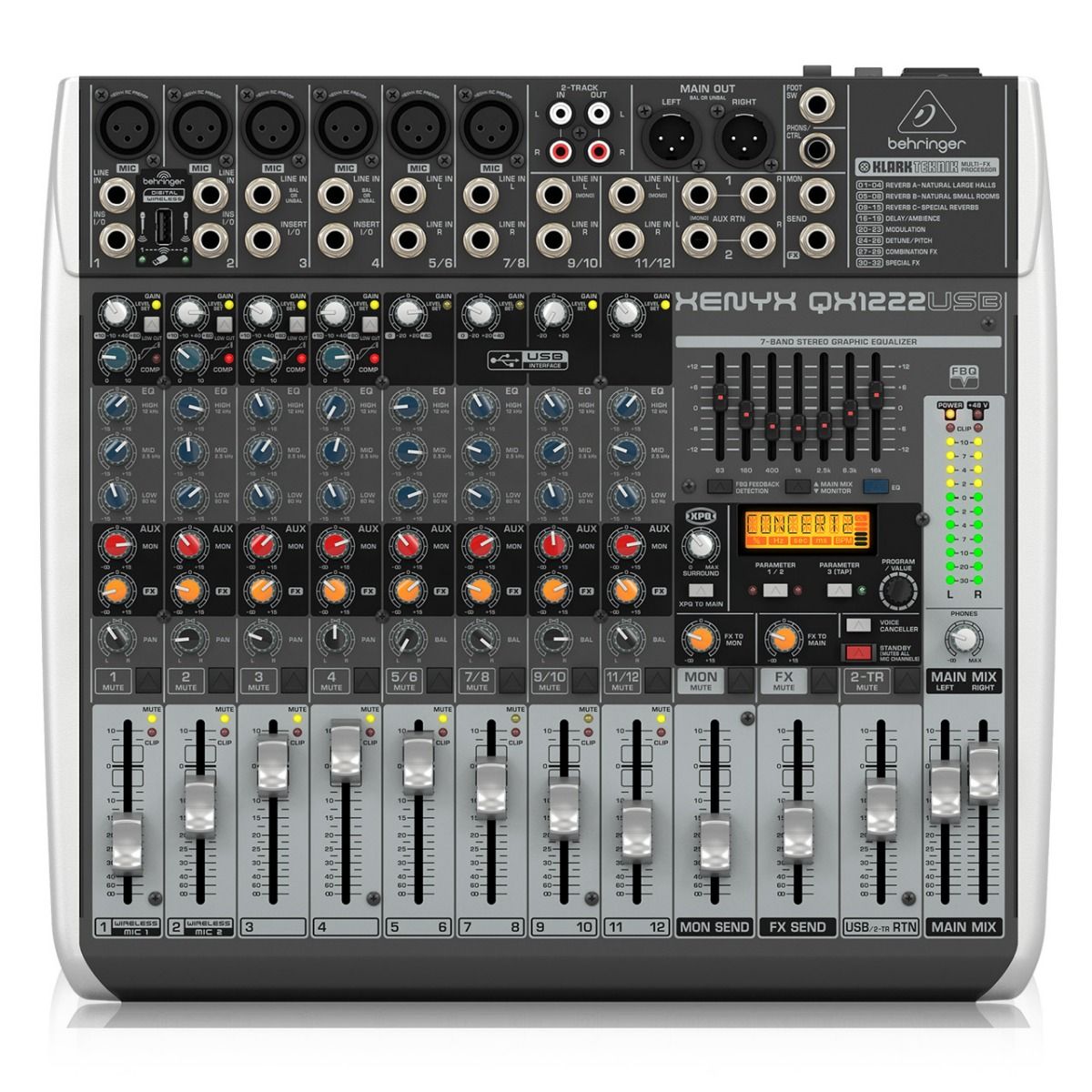

รายละเอียดสินค้า |
Features:
- Premium ultra-low noise, high headroom mixer
- 4 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
- 4 studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
- Ultra-high quality KLARK TEKNIK FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
- “Wireless-ready” for high-quality BEHRINGER digital wireless system (not included)
- Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
- Neo-classic “British” 3-band EQs for warm and musical sound
- 7-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
- Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies
- Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
- Voice Canceller function for easy-to-use sing-along applications
- 4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control
- Channel inserts on each mono channel for flexible connection of outboard equipment
- 2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send); 2 multi-functional stereo aux returns
- Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo rec outputs
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- Planet Earth switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- Designed and engineered in Germany
Specifications
Total # Of Inputs |
16 |
Input Channels |
Mono: 4 Stereo: 4 |
Preamplifier |
4x XENYX |
USB Connection |
2-in/2-out |
Buses |
Mix: 2/2 |
Phantom Power |
+48 V |
EQ Type |
Mono channel 3-band |
Compressor |
4 |
Wireless (Features) |
Built-in compatibility with Behringer wireless microphone system |
AUX Sends |
Per channel: 1/1 |
AUX Returns |
2 stereo returns |
Metering |
12-segment stereo LED meters Clip LEDs on every channel |
Microphone Inputs |
Type |
6x XLR connector, balanced, discrete input circuit |
Mic Input Noise (E.I.N.) |
From 20 to 20,000 Hz At 0 Ω source resistance: -134 dB/-136 dB A-weightedAt 50 Ω source resistance: -131 dB/-133 dB A-weighted
At 150 Ω source resistance: -129 dB/-131 dB A-weighted
|
Frequency Response |
Preamp: < 10 to 150,000 Hz (-1 dB) < 10 to 200,000 Hz (-3 dB) Mic input to main output: <10 to 160,000 Hz: ± 3 dB |
Dynamic Range |
Not specified by the manufacturer |
Gain Range |
+10 to +60 dB |
Maximum Input Level |
+12 dBu at +10 dB gain |
Impedance |
2 kΩ balanced |
Signal-to-Noise Ratio |
107 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain) |
Total Harmonic Distortion (THD) |
0.005% / 0.004% A-weighted |
Phantom Power |
Switchable, +48 V |
Line Input |
Type |
1/4″ TRS connector, balanced |
Impedance |
20 kΩ balanced
10 kΩ unbalanced
|
Gain Range |
-10 dB to +40 dB |
Maximum Input Level |
30 dBu |
Stereo Input |
Type |
4x 1/4″ TRS connector, unbalanced |
Impedance |
20 kΩ balanced 10 kΩ unbalanced |
Gain Range |
-20 dB to +20 dB |
Maximum Input Level |
+22 dBu |
Tape |
Tape I/O |
Type: RCA Connectors
Impedance: 10 kΩ
Maximum Input Level: +22 dBu
|
Equalizer |
EQ Type |
3-Band Semi-Parametric Low: 80 Hz / ± 15 dB Mid: 2,500 Hz; / ± 15 dB High: 12,500 Hz / ± 15 dB |
Insert |
Type |
1/4″ TRS connector, unbalanced |
Maximum Input Level |
+22 dBu |
AUX Section |
AUX Sends |
Type: 2x 1/4″ TRS connector, unbalanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu
|
AUX Returns |
Type: 2x 1/4″ TRS connector, unbalanced
Impedance: 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: +22 dBu
|
Outputs |
Main Outputs |
Type: XLR, balanced
Impedance: 240 Ω symmetrical, 120 Ω unbalanced
Maximum Output Level: +28 dBu
|
Control Room Outputs |
Type: 1/4″ TRS connector, balanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu
|
Headphone Outputs |
Type: 1/4″ TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: +21 dBu at 150 Ω (+25 dBm)
|
Stereo Tape Outputs/Type |
Type: RCA connectors
Impedance: 1 kΩ
Maximum Output Level: +22 dBU
|
DSP |
Klark Teknik Converter: 24-bit Sigma-Delta, 64-/128-times oversamplingSampling rate: 40 kHz |
Noise |
Main mix at -∞ with channel fader at -∞: -100 dB / -102 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -86 dB / -88 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -81 dB / -83 dB A-weighted
|
USB |
Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
|
Power Supply |
Mains |
100 to 240 V, 50/60 Hz |
Power Consumption |
40 W |
Fuse |
T 1.6 A H 250 V |
Connection |
Standard IEC receptacle |
General |
Dimensions (W x D x H) |
14.6 x 13.3 x 3.5″ (370 x 338 x 90 mm) |
Weight |
8.4 lb (3.8 kg) |
Packaging Info |
Package Weight |
12.5 lb |
Box Dimensions (LxWxH) |
18.5 x 16.5 x 6.0″ |
|
