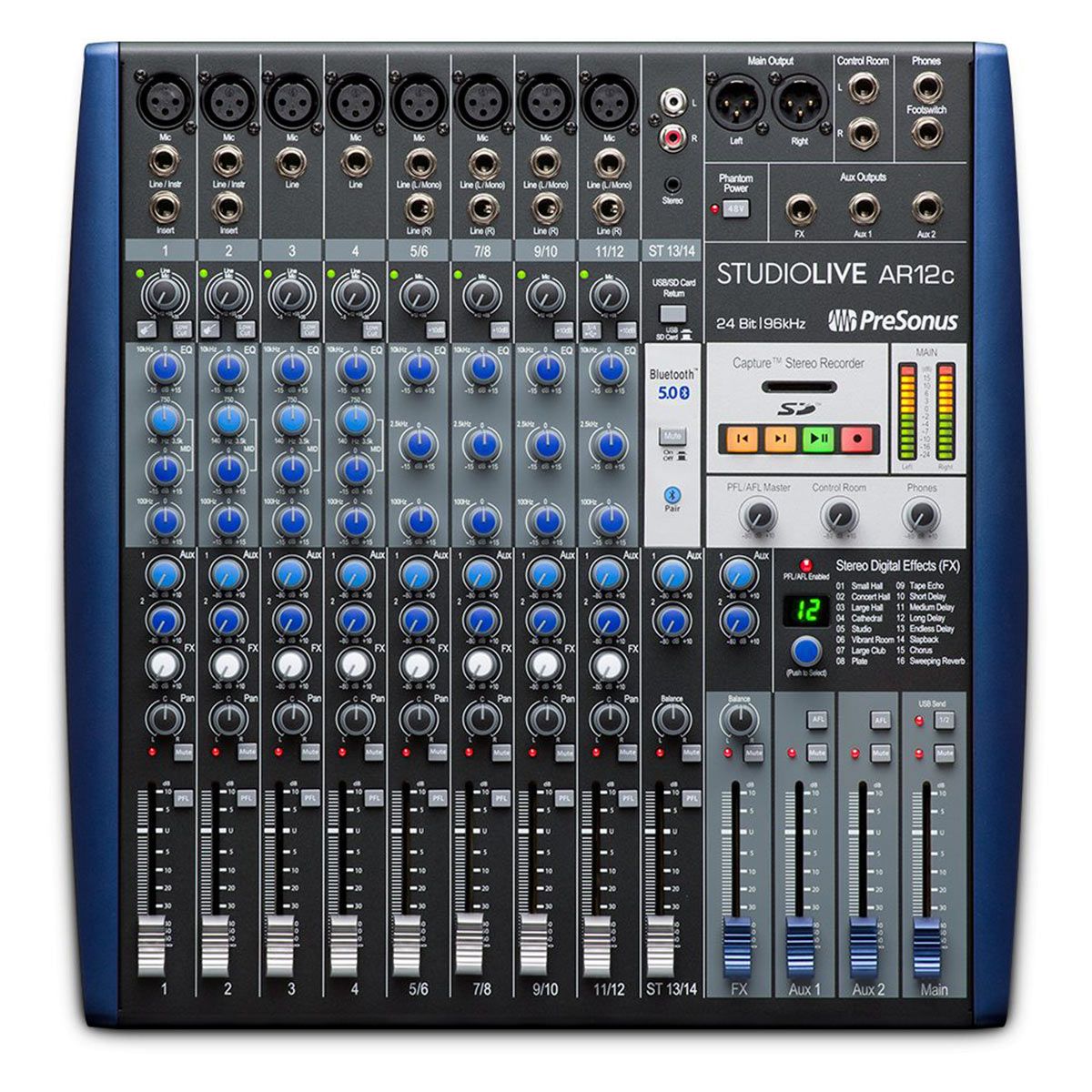

Features
Recording
- 14x4 24-bit/96 kHz, USB 2.0 (over USB-C connection) audio recording interface
- Record every channel plus the main mix
- 2x2 SD recorder to capture the main mix
- Supports SD™ and SDHD™ formats up to 32 GB
Mixing
- 14-channel analog mixer
- 8 balanced microphone inputs with XMAX mic preamps
- 2 insert points
- 2 instrument/line inputs
- 12 balanced line level inputs:
- Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- 4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
- 2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
- L/R Control Room outputs with level control
- Headphone output with level control
Signal Processing
- Highpass filter on every channel
- 3-band quasi-parametric EQ with sweepable mid-band on each mono channel
- 3-band semi-parametric EQ on each stereo channel
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Mic/line boost on stereo channels for low-level input sources and consumer devices
Included Software
- Capture® live multitrack recording software
- Studio One® Artist recording and production software (DAW)
- Studio Magic Software Suite
Power
- Internal power supply
- Standard IEC power connector
Physical
- Sturdy metal construction
- 60 mm faders
- Optional rackmount kit
|
Microphone Preamp
|
|
| Type |
XLR Female, Class A XMAX |
| Maximum Input level (unity gain) |
+9 dBu ± 1.0 dB |
| Gain Control Range |
43 dB (+12 to +55 dB) |
| Frequency Response to Analog Outputs |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| Frequency Response to USB (Direct) |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| S / N Ratio to Outputs (+4 dBu) |
94 dB |
| THD + N (min. Gain, A-wtd) |
<0.01% |
| Input Impedance |
1 kΩ |
| EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd) |
Mono Channels: <128 dBu |
| Common Mode Rejection Ratio (1 kHz, +55 dB gain) |
65 dB |
| Phantom power |
+ 48V, ± 3V, Global |
|
Instrument Inputs
|
|
| Type |
¼” TS Female, Unbalanced, Hi-Z |
| Maximum Input Level (min. Gain, 1 kHz@0.5% THD + N) |
+9 dBu ±1.0 dB |
| Gain Control Range |
43 dB, ±1 dB (+12 to +55 dB) |
| Frequency Response to Analog Outputs |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| Frequency Response to USB (Direct) |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| Dynamic Range (min. Gain, A-wtd) |
> 105 dB |
| Dynamic Range (mid. Gain, unwtd) |
> 108 dB |
| THD + N (1 kHz, -1 dBFS, A-wtd) |
<0.01% |
| THD + N (1 kHz, -1 dBFS, unwtd) |
<0.01% |
| Input Impedance |
> 1 MΩ |
|
Line Inputs
|
|
| Type |
¼” TRS Female, Balanced |
| Maximum Input Level (min. Gain, 1 kHz@0.5% THD + N) |
+26 dBu ±1.0 dB |
| Gain Control Range |
Mono Channels: 40 dB, ± 1 dB (-5 to +35 dB)
Stereo Channels: 0 dB or +10 dB (+10 dB Boost)
|
| Frequency Response to Analog Outputs |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| Frequency Response to USB (Direct) |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| S / N Ratio to Analog Outputs (+4 dBu) |
85 dB |
| THD + N (1 kHz, -1 dBFS, A-wtd) |
<0.01% |
| Input Impedance (Balanced) |
10 kΩ |
|
Main, Control Room, Monitor, and FX Outputs
|
|
| Type (Main Outputs) |
XLR Male, Impedance Balanced |
| Type (Control Room, Monitor, FX Outputs) |
¼” TRS Female, Balanced |
| Rated Output Level (Main Outputs) |
+24 dBu, ±1.0 dB |
| Rated Outputs Level (Control Room, Monitor, FX Outputs) |
+18 dBu |
| Frequency Response |
20 Hz to 20 kHz, + 0.5/-1.5 dB |
| Dynamic Range (A-wtd) |
> 108 dB |
| THD + N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) |
<0.01% |
| Output Impedance |
100 Ω |
|
Headphone Output
|
|
| Type |
¼” TRS Female, Stereo, Unbalanced |
| Maximum Output Level |
150 mW / channel @ 60 Ω |
| Frequency Response |
20 Hz to 20 kHz, + 0.5 / -1.5 dB |
| Dynamic Range (A-wtd) |
>103 dB |
| THD + N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) |
<0.01% |
|
System Crosstalk
|
|
| Input to Output (Ref = + 4dBu, 20 Hz to 20 kHz, unwtd) |
-90 dBu |
| Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd) |
-85 dBu |
|
Signal Level LED
|
|
| Signal |
-30 dBFS (pre-EQ) |
| Clip |
-3.0 dB before clip (pre or post-EQ) |
|
Channel EQ
|
|
| Low cut |
100 Hz, -18 dB/Octave |
| High Shelving |
±15 dB @ 10 kHz |
| Mid Peaking (Mono Channels) |
±15 dB @ 140 Hz to 3.5 kHz (variable) |
| Mid Peaking (Stereo Channels) |
±15 dB @ 2.5 kHz |
| Mid-Band Q |
Boost: 1.0, Cut: 2.5 |
| Low Shelving |
±15 dB @ 100 Hz |
|
Digital Audio
|
|
| Host interface |
USB 2.0 |
| ADC Dynamic Range (Component) |
114 dB |
| ADC Dynamic Range (Measured: A-wtd, 48 kHz) |
105 dB |
| DAC Dynamic Range (Component) |
114 dB |
| DAC Dynamic Range (Measured: A-wtd, 48 kHz) |
105 dB |
| Signal-to-Noise (a-weighted) |
-96 dB |
| Bit Depth |
24-bit |
| Internally Supported Sample Rates |
44.1, 48, 88.2, 96 kHz |
| Jitter |
<80 ps RMS (20 Hz - 20 kHz) |
| Jitter Attenuation |
> 60 dB (1 ns in => 1 ps out) |
|
SD Recorder
|
|
| Supported Media Format |
FAT16 formatted SD™ card, FAT32 formatted SDHC™ card |
| Media Storage Capacity |
SD card: 2 GB; SDHC card: 32 GB |
| Recording File Format |
Stereo WAV |
| Playback File Formats |
Stereo WAV, MP3 (96-320 kbs, 32/44.1/48 kHz) |
| Sampling Rate (WAV) |
44.1 kHz |
| Bit Depth |
Recording: 24-bit
Playback: 16- or 24-bit
|
|
Power / Environmental
|
|
| Connector |
IEC |
| Input Voltage Range |
90 to 240 VAC |
| Recommended Ambient Operating Temperature |
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit |
|
Physical
|
|
| Height |
3.5” (89 mm) |
| Width (Chassis only) |
15" (381 mm) |
| Depth |
15.6” (397 mm) |
| Weight |
11.9 lbs (5.4 kg) |
|
