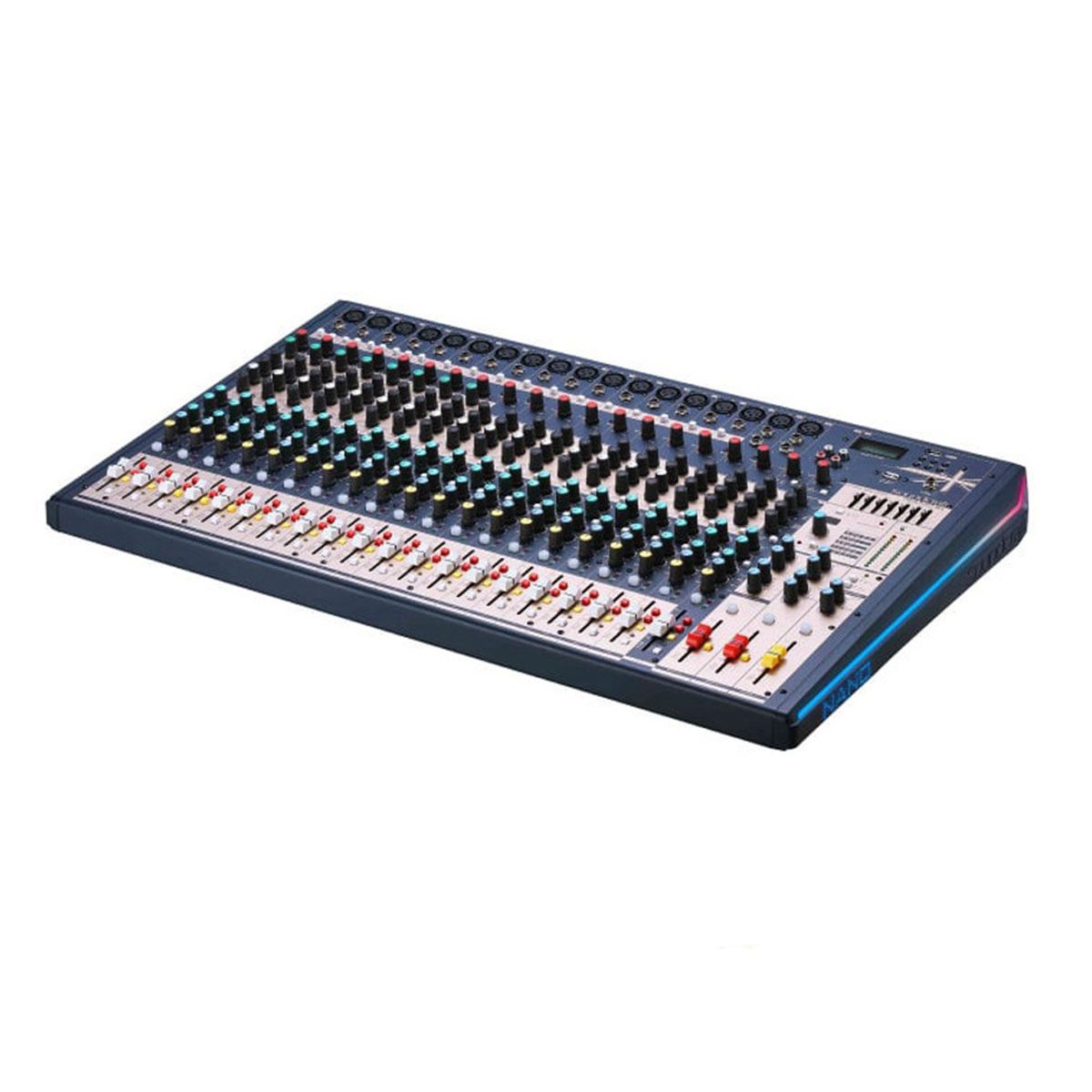

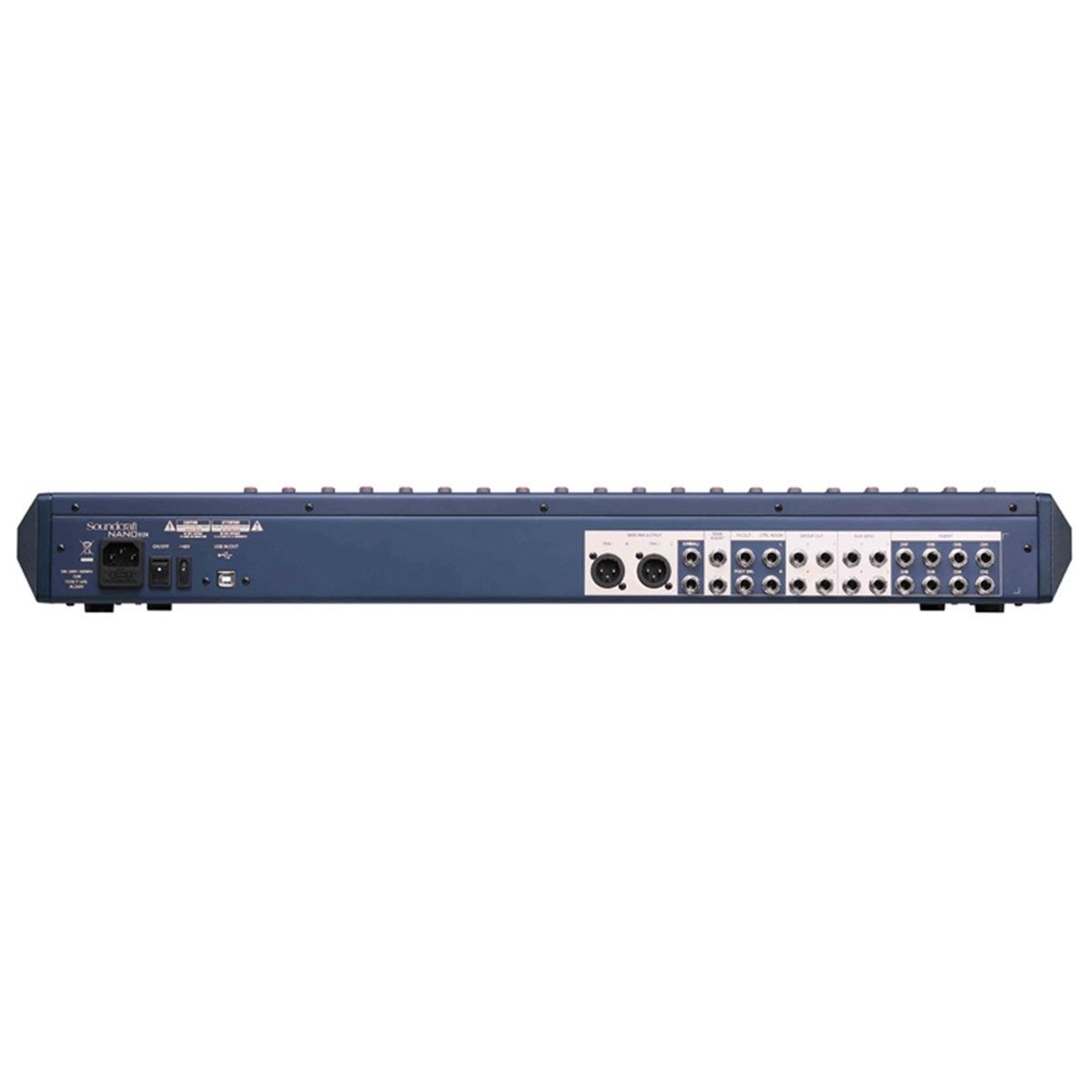

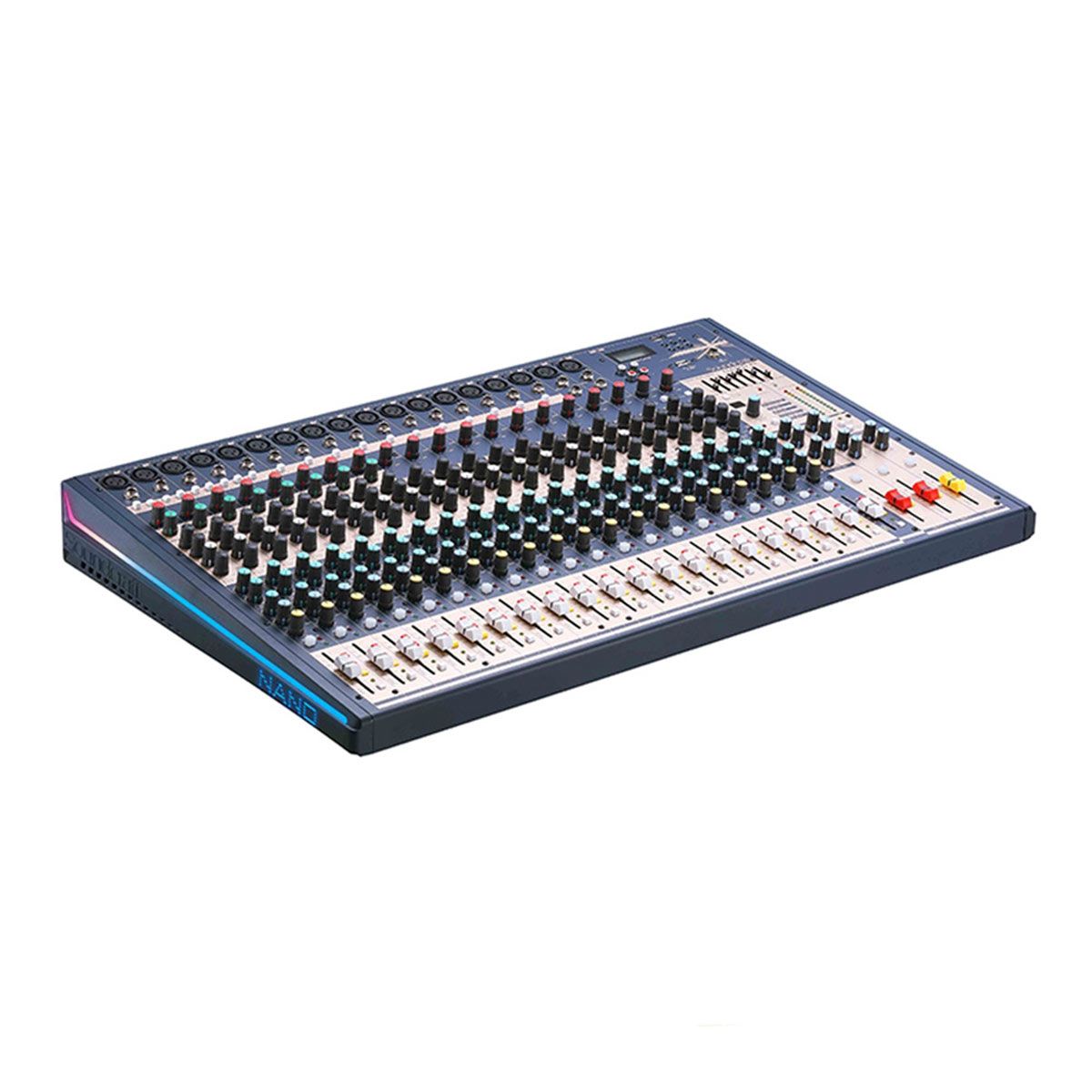

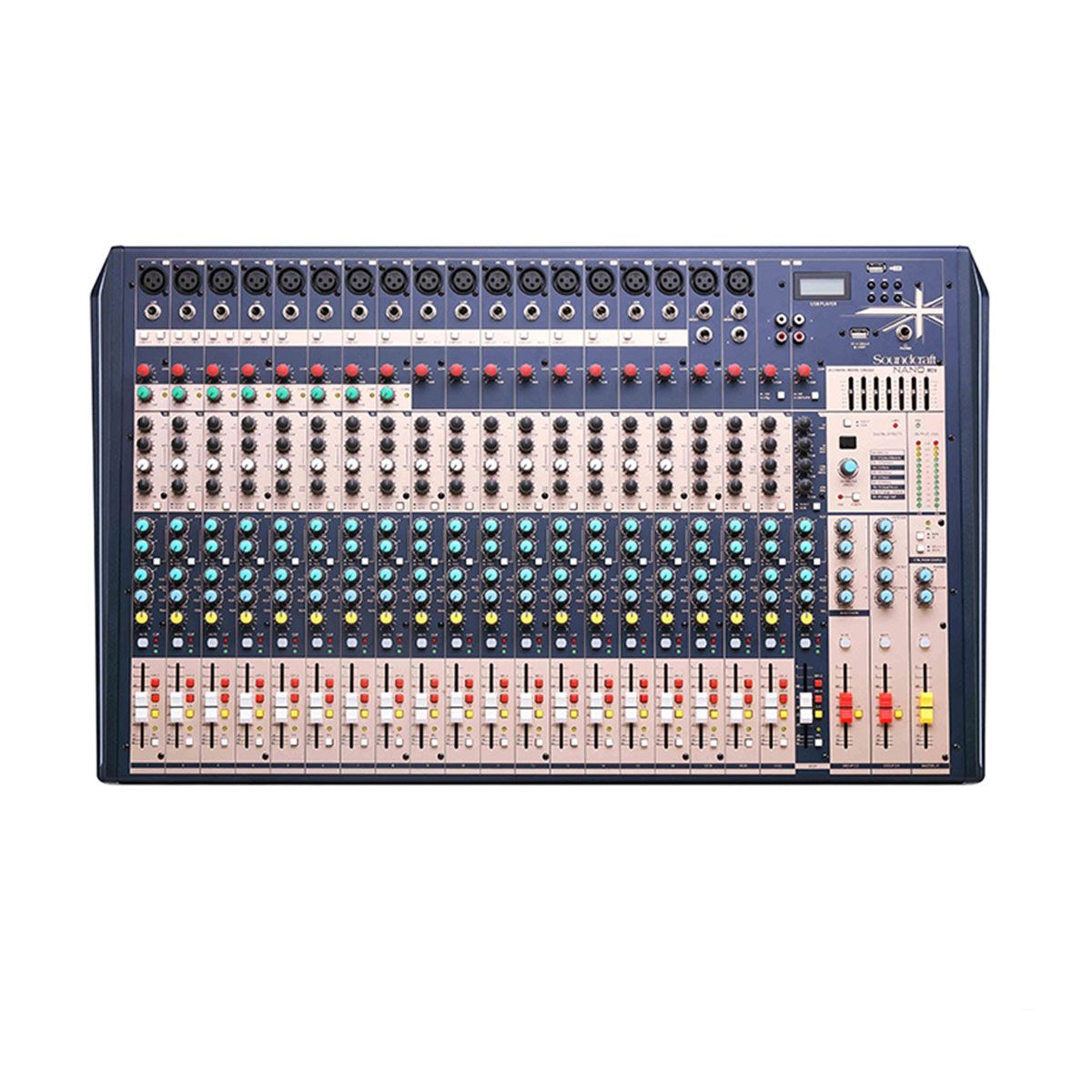

Soundcraft Nano M24 Analog Mixer

FEATURES

• Ultra-low noise discrete MIC preamp with +48V phantom power.
• 8 / 16 mono input channels and 4 stereo input channels.
• Each input channel accepts balanced XLR MIC input and TRS LINE input.
• Low cut for each MIC input.
• Each mono input channel is equipped with 3-band EQ, sweepable MID and PEAK LED.
• 2 stereo input channels accept mono XLR or TRS input; 2 stereo input channels accepts RCA input.
• Each stereo input channel is equipped with 4-band EQ and PEAK LED.
• 8 compressor controls and 8 channel insert points.
• AUX 1 & AUX 2 send post/pre-fader signal for monitoring or external effects; AUX 3 & FX send post-fader for internal effects or monitoring.
• PFL/MUTE and 60mm fader for each channel.
• GR1/2, GR3/4 and MAIN L-R buss assignment for each channel.
• MAIN MIX installs a pair of balanced XLR and a pair of unbalanced TRS connectors and can be equalized via a 7-band GEQ.
• MAIN MIX supports external effect insert.
• 24-bit DSP processor provides up to 100 effect presets.
• USB player for MP3 playback and recording.
• Switch-mode power supply for 100-240Voltage.
• USB port for MAIN MIX recording or playback through CH 15/16 (M16) or CH 23/24 (M24).
• Cutting-edge and eye-catching design. Uniquely-designed Atmos Meter
  adds extra visual effects to live performance.
