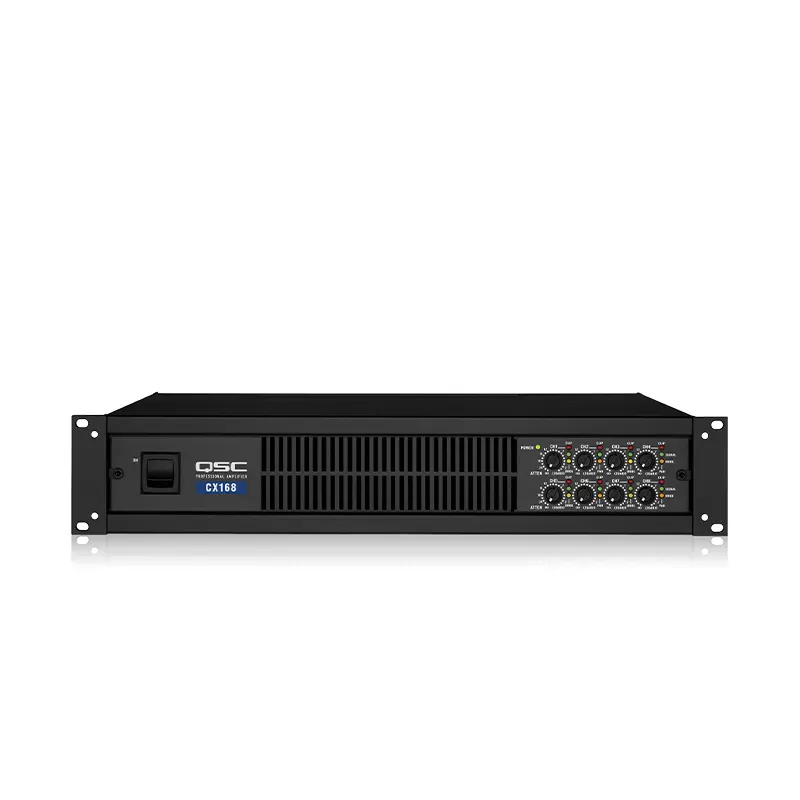

QSC CX168 เครื่องขยายเสียง 8 แชนแนล 90 วัตต์

Power

• 8 ohms, 0.05% THD: 90W
• 4 ohms, 0.1% THD: 130W
• Midband Rating, 8 ohms, 0.1% THD 1kHz: 100W allchannels, 120W single channel
• Midband Rating, 4 ohms, 0.1% THD 1kHz: 140W allchannels, 180W single channel
• 16 ohms 0.1% THD 20Hz-20kHz: 180W
• 8 ohms 0.1% THD 20Hz-20kHz: 260W

Specifications

• Input Impedance: 6 kilohms unbalanced, 12k ohmsbalanced
• Input Connectors: 3-pin Euro-style detachableterminal blocks (one per channel)
• DataPort Connector: HD-15 Connector (Ch 1+2, 3+4,5+6, 7+8)
• Output Connector: Two 8-pin Euro-style detachableterminal blocks
• Front Controls: AC switch, Ch 1, 2, 3, 4, 5, 6, 7,& 8 gain knobs
• Rear Controls: DIP switches for Ch. 1 - Ch. 8, cliplimiter on/off, LF filter on/off, LF filter freq select 33 or 70 Hz, inputsparallel or stereo; bridge mode
• Amplifier Protection: Full short circuit, opencircuit, thermal, ultrasonic, and RF protection; Stable into reactive ormismatched loads
• Load Protection: On/off muting; individual channel DCfault blocking
• Dimensions (W x H x D): 19" x 3.5" x 14" (2 RU)
• Weight: 21 lbs net, 27 lbs shipping
