BOSE ArenaMatch AM10/60 IP55 Rated Outdoor Array Loudspeaker

Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area

Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays

Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose EMB2S titanium-diaphragm neodymium compression drivers

Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover

Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays

Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance

Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs

Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP

Save time during installation using Bose accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames

EN54 Certified: EN54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

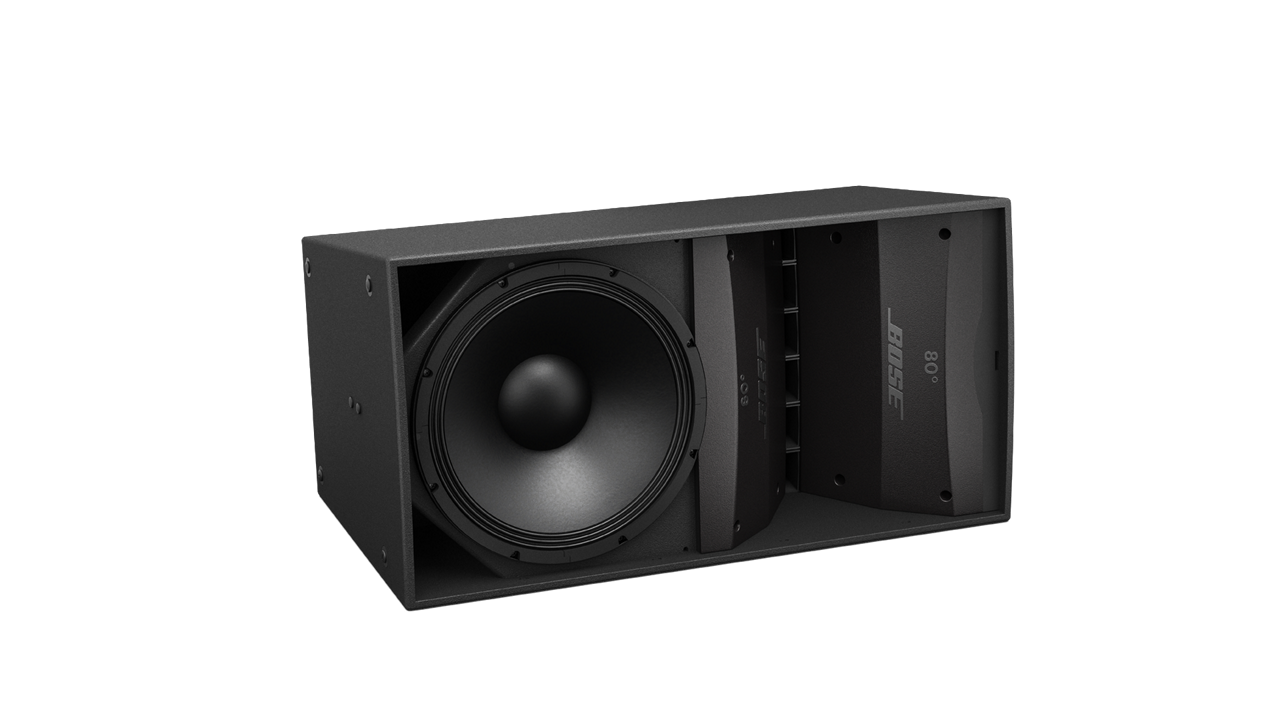

BOSE ArenaMatch AM10 IP55 Rated Outdoor Array Loudspeaker with 60° x 10° Coverage

Outdoor sound, loud and clear

Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Featuring an IP55 weather rating, ArenaMatch DeltaQ modules make it easy to create durable and reliable outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener.

Full coverage. Fewer modules.

Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides — even in already-assembled arrays — to adjust horizontal coverage and create asymmetrical patterns if needed. By reducing the number of modules required, ArenaMatch loudspeakers can help improve sight lines, reduce array weight, and lower overall system costs compared to some conventional arrays. Most importantly, the coverage flexibility of ArenaMatch loudspeakers means more sound going where you want it — and less where you don’t.

A complete outdoor sound solution

Easily build entire outdoor sound systems. Use a 40° ArenaMatch array modules for point-source applications and 10°, 20°, and 40° modules for line arrays — all with same transducers for consistent tonal balance. And combine ArenaMatch loudspeakers with ArenaMatch Utility loudspeakers, which blend seamlessly to deliver complementary and consistent zone-fill coverage, making equalizing the system is much easier. ArenaMatch loudspeakers also work with Bose PowerMatch amplifiers, ControlSpace DSPs, and ControlSpace Designer software, which simplifies setup and monitoring, saving you time with loudspeaker presets for EQ, limiter, and crossover settings.

Sound that goes long

For outdoor sports complexes, ArenaMatch loudspeakers do more than get the announcements or play-by-play call to the other end of the field. They get it there clearly. A 14-inch neodymium woofer and six Bose EMB2S titanium-diaphragm neodymium compression drivers in each module deliver superior intelligibility. Whether it’s anxious parents or die-hard tailgaters in the stands, they’ll hear — and understand — every word. And when it comes to music, ArenaMatch loudspeakers deliver crystal-clear long-throw music reproduction to get the crowd revved up and back in the game.

Install big or small

All ArenaMatch models ship standard with bi-amp capability, a passive crossover, and 70/100V transformer inputs, so they’re adaptable to a variety of configurations. They also include M12 threaded inserts with internal steel link bars for use with Bose accessory mounting hardware or custom array frames. Built to go all out for celebration, entertainment, competition, ArenaMatch loudspeakers ensure that — even if the weather’s questionable — the sound will be incredible.

Features
