QSC AD-S112-sw-BK ลำโพงซับวูฟเฟอร์ติดผนัง 12 นิ้ว 600 วัตต์

QSC AD-S112-sw-BK ลำโพงซับวูฟเฟอร์ติดผนัง 12 นิ้ว 600 วัตต์

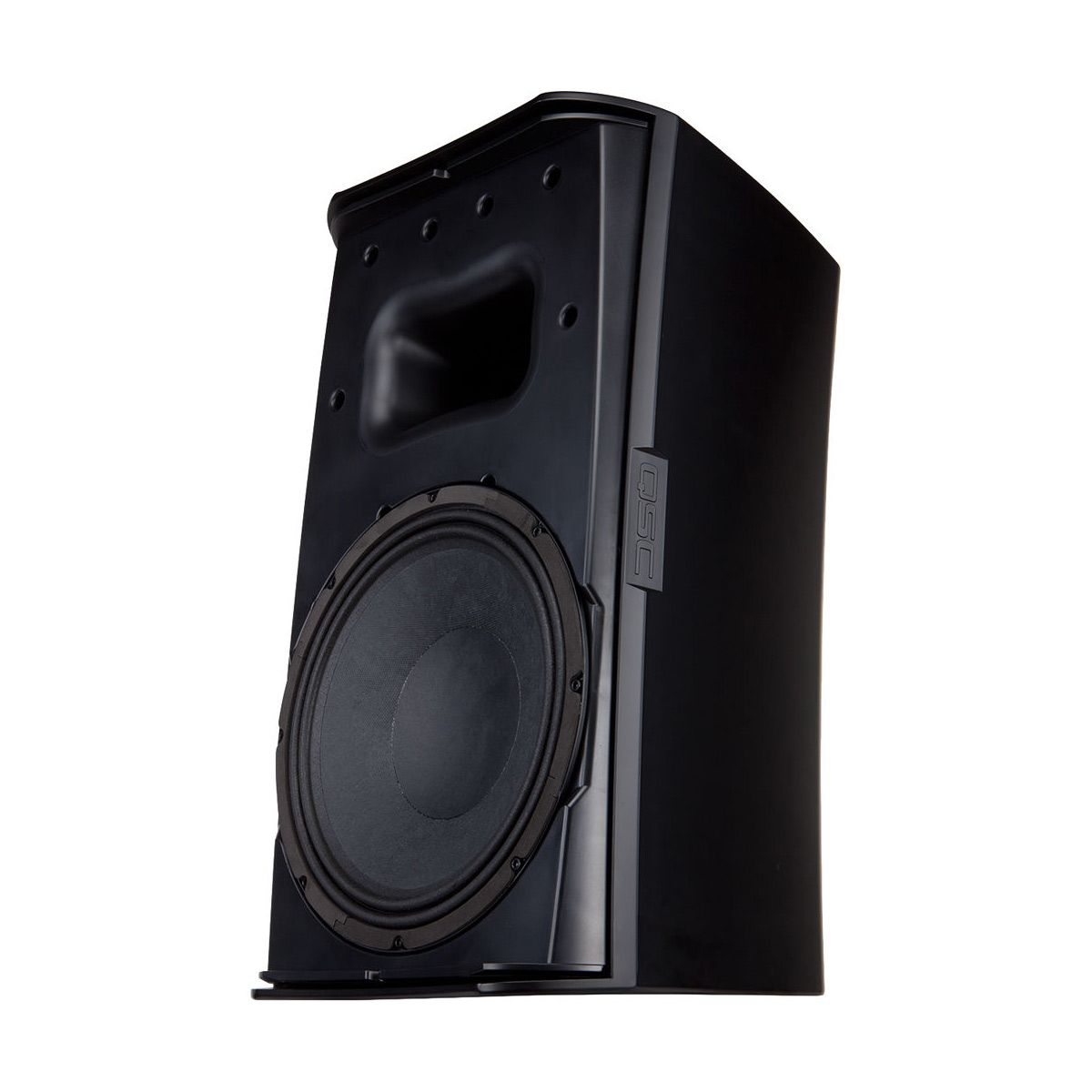

     The black AcousticDesign Series QSC AD-S112sw is a 12" surface-mount 8-ohm subwoofer supplied with a yoke mounting system, making it suitable for low-frequency reinforcement in a variety of foreground and background music applications, a well-matched companion for QSC's AcousticDesign full-range loudspeakers.

     Outfitted with a 12" weather-treated woofer on a 2.5" voice coil, the AD-S112sw direct-radiating subwoofer offers 300W RMS power handling, a frequency range of 30 to 135 Hz (-10 dB), and a peak maximum SPL of 121 dB. Its TFR (Turbulent Flow Reduction) port optimizes resonance tuning and yields higher output SPLs before turbulence.

    The AD-S112sw utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S112sw boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.

• 12-inch weather treated woofer
• TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
• Maximum peak SPL 121 dB
• Suggested filter points: 32 Hz high-pass, 24 dB/octave Butterworth; 100 Hz low-pass, 24 dB/octave Butterworth
• Included YMS12 yoke mount maximizes boundary plane coupling while reducing vibration transmission
• Optional M10 Kit-C for additional installation versatility
• Lightweight ABS enclosures offer long-term durability and lasting good looks
• Sealed input panel cover and powder coated aluminum grilles for added weather resistance
• Meets IEC60529 IP-54 for dust and splash resistance
• Available in black (RAL 9011)
• Complete EASE, CF2, CAD, and BIM information available online

สเปค
